Brand Name : | DYS/OEM |

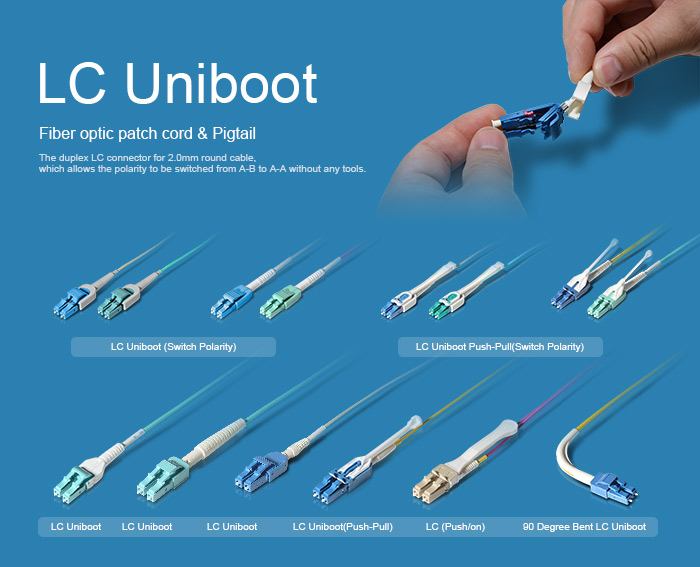

Model Number : | LC Uniboot (Switch Polarity) |
Certification : | IS09001-2015.ROHS |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
Supply Ability : | 50000/week |
Delivery Time : | in 3 days |
Price : | Negotiable |
Application
1.Data Centers
2.Local Area Networks
3.High-Density Applications
4.Interconnects
5.Cross-connects
Features
1.Uniboot with a Single Housing
2.Unique Push-Pull Design and Function
3.Interchangeable polarity
4.Low insertion loss and added loss.
5.Height of attenuation.
6.High back loss, small volume, light weight.
7.End-face geometry and quality superior than IEC and Telcordia standards.
8.LSZH, OFNP, OFNR cable jacket.
9.Mechanical performance: IEC 61754-20 standard.
10.RoHS and REACH materials compliant.
Connector Types
Type | Reference | Note | |
LC | IEC 61754-20 | Single mode | UPC: Blue connectors , White boots |
Multimode | UPC: Grey or Aqua Connectors , White boots |
Patch cord versions
Jumper tolerance requirement Jumper tolerance requirement | |
Overall length (L) (M) | length of tolerance(CM) |
0<L≤20 | +10/-0 |
20<L≤40 | +15/-0 |
L>40 | +0.5%L/-0 |
![]() |
