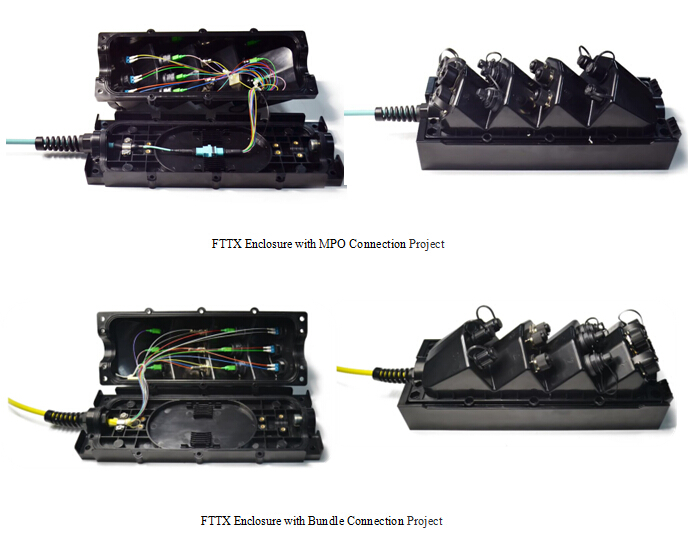

FTTXEnclosureisaneweconomicfiberdistributedsolutionforoutdooruse.Comparetraditionalproducts,FTTXEnclosureis
easytooperateandhashighcompatibility.Itcanbeusedforwall-mounting,aerialinstallationorholdingpoleinstallation,basedon differentsituation.FTTXEnclosurenotonlyusedinFTTHfield,butalsousedinFTTAorotherharshenvironment.

1.FTTXEnclosureApplication

①.FTTHfield

TraditionalsolutionuseONUorFDH(OpticalNetworkUnit/FiberDistributionHub),whentrunkopticalcablearrivestooutside
ofmansionsandvillas.FTTXEnclosurecanreplaceONUorFDHbecauseithasfiberdistributionfunction.Inside,itcanbefixed 2-4pcs1*8or1*16PLC,andcanbeput24pcsfiberspliceprotectionsleeves.Aftermatingwith1-48FIP67preassembledwaterprof connector,FTTXEnclosurecanconnecteachmansionandvillaorlowvoltagesilodirectly.Itcanbefixedoutsideofmansions

And villas,orholdingpoleinstallation.FTTXEnclosurecanreducesignallossthroughlessconnectingnode.Forinfactory

Preassembled FTTXEnclosure,it’snoneedhighskilloperatorbecauseofnofiberspliceoperation.Installationefficiencycanbe

increasedby40%.

②.FTTAfield

Traditionally,RemoteRadioUnit(RRU)andBuildingBasebandUnit(BBU)connectedbyopticalfibercable,formestar
networktopology.EachRRUneedoneduplexoutdoorcablelinktoBBU.Installationwillneedmoretimeandcostwillbehigh.

FTTXEnclosureworkasanAggregation/Demarkbox,linkRRUandBBUtogether.FromBBUtoFTTXEnclosure,onlyneed
onemulti-fiberhybridcable.ThenFTTXEnclosuredividefiberstoeachRRUthroughIP67preassembledwaterproofcable
assemblies.RRUcangetpowerthroughassembledpowerconnectoronFTTXEnclosure.Itcanavoidneedlessduplication.

③.TrunkCableConnecting

Trunkcableneedstobefusionweldedfrequentlybecauseofeachdrumcablelengthlimited.Soconnectingpointisweakand

Need tobeprotectedverywell.WhentrunkcablecomesintoFTTXEnclosure,itwillbesealedandfixedbytorsionproof

cableGland (plasticormetaltype).For5mm-14mmoutdiametercable,FTTXEnclosurehasdifferentaccessoriestofit.Torsion

glandCanrelease stresswhentrunkcablebendingandprotectfiberavoidbreaking.InsideoftheFTTXEnclosure,maincableand

strengthMemberwere fixedbyfastener,whichmakesuretheboxcanstand1200Npullingforcelongterm.Spliceprotection

sleeve(Max.24pcs)andPLC (Max.2pcs)canbefixedonthebody,whichmakeFTTXEnclosurefiberdividedveryeasy.

Anti-skiddesignonthebasecase,which makessureFTTXEnclosureholdswire/polefirmly.

④.ProspectingorMilitaryCommunication

Thecablewillbereplayedfrequently,whenprospectingormilitarycommunication.Normalconnectorandcablecannotstand
frequentlyandhighstrengthpullingandreuse.InsideoftheFTTXEnclosure,armoredcableandstrengthmemberwerefixedby fastener,whichmakesuretheboxcanstand1200Npullingforcelongterm.It’sverysuitableforfielduse,especiallyinstar

network communications.HighstrengthmaterialandarcinterfacedesignmakesureFTTXEnclosureworkabnormallywhenSuffer

shocks.

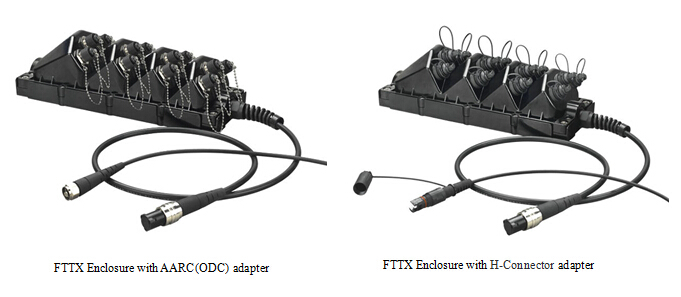

2.FeaturesandBenefits *Highcompatibility:canbeassembledODVA,Hconn(OptiTapcompatible),MiniSC,ODC,PTLC,PTMPOorpoweradaptr. *Factory-sealedorfieldassembly.

*Strongenough:workingunder1200Npullingforcelongterm.

*From2to12portsforsingleormultifiberharshconnectors.

*AvailablewithPLCorsplicesleeveforfiberdivide.

*IP67waterproofrating.

*Wall-mounting,aerialinstallationorholdingpoleinstallation.
*Decreasedanglesurfaceandheightmakesurenoconnectorinterferingwhenoperating.

*MeetIEC61753-1standard.

*Costeffective:save40%operatingtime.

3.Specification
