AARC,Stap,IPFX Connector CPRI outdoor fiber cable assemblies For
FTTA
CPRI Cable
Features:
1. The CPRI patch cords are used for outdoor RRU transmitting
optical signal and remote fiber feeder etc;
2. Standard Duplex LC connector, well connected with standard LC
adaptor
3. Available Single mode and Multimode
4. IP67 protection, salt-mist proof, humidity proof, dust proof
5. Low insertion/return loss, steady optical transmitting.
6. Light weight, waterproof, dustproof, moisture proof, Metal hard
housing.
7. 500cycles Mechanical life
8. Easily add/install jumper cables for a future expansion
9. Factory-assembled cables for a fast on-site installation
10. Flexibility with small bending radius and excellent cable
routing properties
11. Equipped with customer specific power and fiber-optic
connectors
Applications:
1. Multi-purpose Outdoor.
2. For connection between distribution box and RRH.
3. Deployment in Remote Radio Head cell tower
| Type | SM-UPC | SM-APC | MM-UPC |
| Typical | MAX | Typical | MAX | Typical | MAX |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB |
| Durability | 500 mating cycles |
| Working temperature | -40 to + 85℃ |

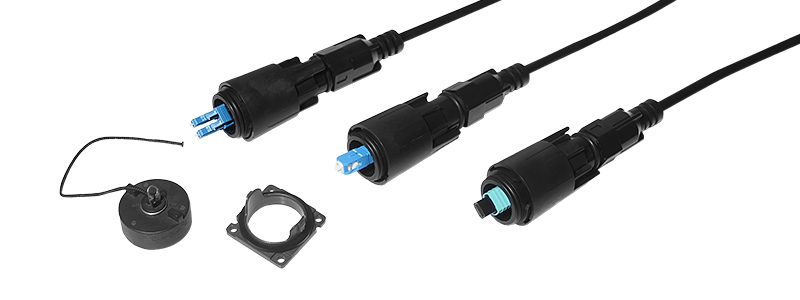

IPFX fiber cable assemblies
Application
- Multi-purpose Outdoor
- For connection between distribution box and RRH
- Deployment in Remote Radio Head cell tower applications
Features
- Factory terminated (tested cables) or Field installable version
available
- Pre-fitted with the IPFX receptacle
- Water proof, dust proof
- IP67 water and dust protection
- Designed to meet 150N cable retention

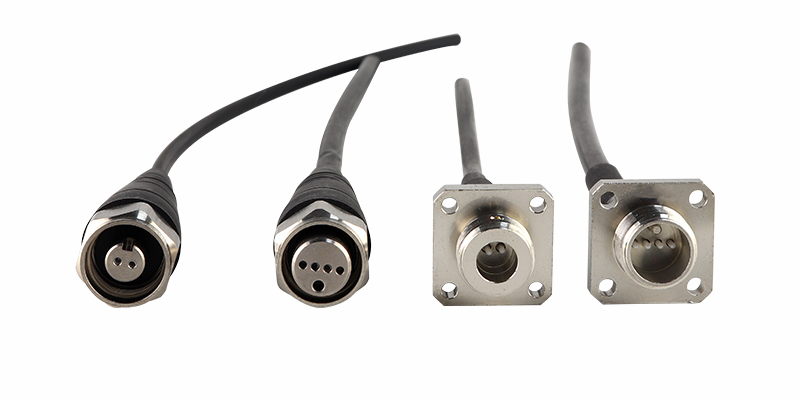

AARC Outdoor Cable Assemblies
APPLICATION
Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications
FEATURES
Bird proof and rodent resistant
IP67 water and dust protection
Available with singlemode or multimode fiber
Flange, Jam-Nut, or In-Line type receptacle assemblies
Operating temperature: -40° to 85°C
RoHS compliant
STAP Outdoor Cable Assemblies
STAP cable assemblies provide the most cost-effective method of
deploying optical fiber in outside plant distribution networks at
speeds significantly fast than traditional field installations. The
assemblies guarantee an easy, one-step connection system with the
combined push-pull insertion and nut-style mechanical latch. STAP
cable assembly provides quick installation solutions and has good
performance on mating with STAP adapter. Cable can be amored or
non-amored. STAP connector utilizes optical fiber cables upon which
network access points are pre-installed at customer-specified
locations along the length of the cable.
PRODUCT PARAMETERS
| Type | SM-UPC | SM-APC | MM-UPC |
| Typical | MAX | Typical | MAX | Typical | MAX |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB |
| Durability | 500 mating cycles |
| Working temperature | -40 to + 85℃ |
