SC UPC - SC UPC SM Duplex Fiber Optic Patch Cord

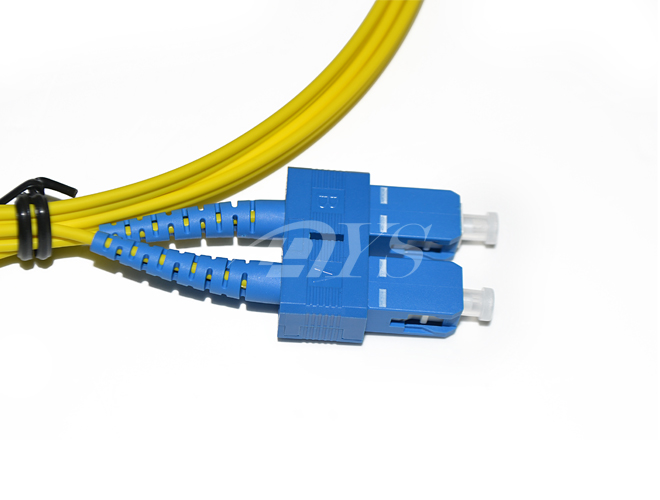

SC UPC SM Duplex 3.0mm fiber optic patch cord


Fiber optic patch cord is available in both Single mode and multimode versions.

Both single-mode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end.

These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability

Features:
1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard

Application:
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical

Parameter

Mode	Single mode		Multimode
Polish	UPC	APC	PC
Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB
Return Loss	≥55dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Salt Spray	≤0.1dB
Repeatability	≤0.1dB (1000 times)
Vibration	≤0.2dB (550Hz 1.5mm)
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset	0μm ~ 50μm
Radius of Curvature	7mm ~ 25mm
Standards-Compliant	ROHS,IEC and GR-326

Fiber cable performance specifications
Fiber type	Min.Bandwidth	Distance	attenuation
62.5/125	850/1300nm 200/500 MHz/Km	@100Mbps 2km @1Gig 220m	850/1300nm 3.0/1.0dB/km
50/125	850/1300nm 500/500 MHz/Km	@100Mbps 2km @1Gig 500m	850/1300nm 3.0/1.0dB/km
50/125 10Gig Optimized	850/1300nm 2000/500 MHz/Km	@100Gig Varies by VCSEL typical 300m 2850nm	850/1300nm 3.0/1.0dB/km
9/125	1310/1550nm Approx 100 Terahertz	Up to 100km Varies by transceiver	1310/1550nm 0.4/0.3dB/km

Fiber type	Single mode: 1,9/125-G652D 2,9/125-G655 3,9/125-G657
	Multimode: 4,50/125-OM2 5,62.5/125-OM1 6,50/125-OM3
Fiber	Corning,China Fiber,other
Connector1	SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others
Polishing	PC,UPC,APC,MTRJ Male connector,MTRJ female connector
Connector2	SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others
Polishing	PC,UPC,APC,MTRJ Male connector,MTRJ female connector
Cord type	Simplex ,Duplex
Cable diameter	0.9mm ,2.0mm,1.8mm 3.0mm
Cable jacket	PVC,LSZH,OFNR,OFNP
length(M)	0.5m,1m,3M,5m,10m,20m,200m

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified

human resources management to ensure productquality stability andexcellent performance; and good after-

sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.

Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly offer fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the the honorary title of National High-tech enterprise by Shenzhen government in 2014.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 32 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 4 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 10 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
