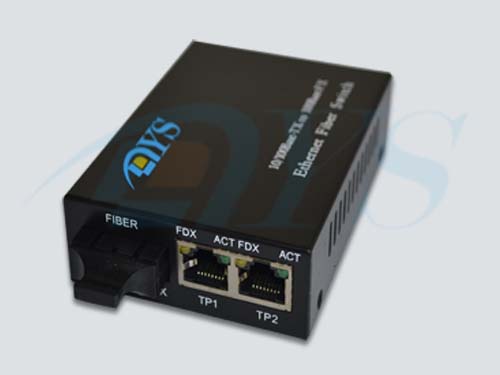

Multimode 10 / 100 / 1000M Optical Fiber Media Converter

Quick Details:

Brand Name: DYS

Model Number: Fiber Converter

band width: 10/100M

Humidity: 5%-95%

Power Loss: <55w

Operating Temperature: 0℃~50℃

Main features

◆The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.

◆Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex

◆UTP port supports MDI / MDI-X auto crossover.

◆Supporting flow control

◆Supporting 1552 bytes packet

◆Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber

◆Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.

◆Supports link fault pass through function

◆Design of internal or external power supply for selection by end-users

Technical Specifications

◆Operating standard:

IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX/FX Fast-Ethernet
IEEE802.3x

◆MAC address table: 1K

◆Data Buffer :128Kb RAM

◆Connector: UTP: RJ-45, 10/100Mbps; Fiber: SC, 100Mbps

◆Cable:

UTP: Cat. 5 UTP (the max distance up to100m)

Fiber ( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)

◆Flow control

Full Duplex:IEEE802.3x

HalfDuplex:back pressure

◆LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.

◆Power :Input:AC 110~265V or DC:-36V~-72V

Output:DC 12-24V 1A

◆Conversion mode: Medium conversion

◆MTBF: 80, 000 hours

◆Ambient temperature:0 ～+50℃

◆Storage temperature:-20 ～+70℃

◆Humidity:5% ～95%

◆Dimensions:

Power external: 26 (high) x 70 (width) x 94 (length) mm

Power internal : 30 (high) x 110 (width) x 140 (length) mm
